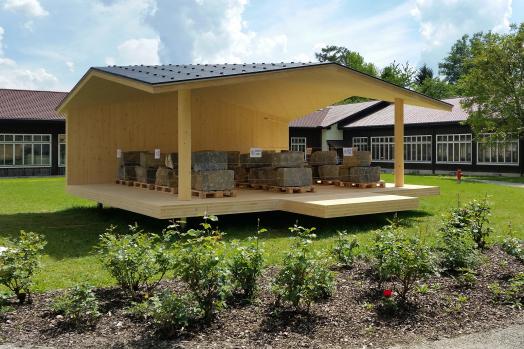

Outdoor test stand at the Bern University of Applied Sciences, Biel
2018
Supports, panels, done: In the courtyard of the Bern University of Applied Sciences in Biel, there is a permanent test stand with the new TS3 technology and the world's first face-bonded balcony. This clearly demonstrates the new possibilities for timber construction.
The innovative Timber Structures 3.0 technology (TS3) glues timber components made of solid, glulam or cross-laminated timber together on the face side. This allows point-supported, multi-axis load-bearing slabs or folded structures of any shape and size. of any shape and size can be created. This opens up constructive and design worlds that were previously inaccessible to timber construction.
As part of a CTI project in collaboration with the Bern University of Applied Sciences BFH and the Swiss Federal Institute of Technology ETH, the endurance test stand was built using TS3 technology. The endurance test stand is an important step in the process of approval testing for the European and American markets.
The Construction
The 7.5 x 7.5 m large, point-supported, two-axis load-bearing floor slab consists of eight 2.5 m and 3.8 m and 1.8 m long, respectively, 24 cm thick cross laminated timber panels, which were joined together by adhesive grouting. The support in a grid of 6.0 x 6.0 m is provided point by point with four 5.0 or 6.5 m long screw foundations. Together with the two 24 cm thick pendulum supports, this demonstrates the TS3 system: Supports, slabs, done.
The challenges
The biggest challenge was the precise bonding of the load-bearing floor slab, the the load-bearing floor slab, the cantilevered balcony, and the folding structure in the roof. in pouring rain. With twelve tons of stone blocks or a permanent surface load of 3.3 kN/m², the construction is now being put through its paces. construction is now being put through its paces.
Construction data
- Round timber supports 24 cm diameter 2 pieces
- Screw foundations 4 pieces
- Roof waterproofing
- Stone blocks 36 pieces or 12 tons
Timber construction
Stuberholz
3054 Schüpfen
Construction management
Bern University of Applied Sciences AHB 2500 Biel
CLT: Schilliger Holz AG, 6403 Küssnacht
Crane work: Flück Holzbau AG, 8602 Wangen b. Dübendorf, Switzerland
Adhesive: Henkel & Cie AG, 4133 Pratteln, Switzerland
Screw foundations: Krinner GmbH, 3272 Walperswil, Switzerland
Roof waterproofing: Contec AG, 3661 Uetendorf
Hydrophobic coating: Böhme AG, 3097 Liebefeld
Natural stone blocks: Guber Natursteine AG, 6056 Kägiswil
Images
Trade press
Concrete out, timber in
Baublatt, August 2019 - Concrete out, timber in by Karin Stei Together with the Bern University of Applied Sciences and ETH Zurich, the start-up Timber Structures 3.0 AG has developed a new technology that allows timber components to be bonded on their faces. This makes point-supported, multi-axis load-bearing slabs or folded structures of any shape possible. Floor slabs can now be made of timber. The exciting text by Karin Stei shows the path from the idea to the market-ready product.
TS3 : construire en bois dans les dimensions du béton
The Tracées magazine is the French-language counterpart to the Tec21 issue, and the 01-02/2019 issue explains the revolutionary technology and shows the way to market entry in the European and American markets. The TS3 timber construction technology developed with the BFH adds a new dimension to timber construction and contributes to the achievement of climate goals. The article is only available in French.

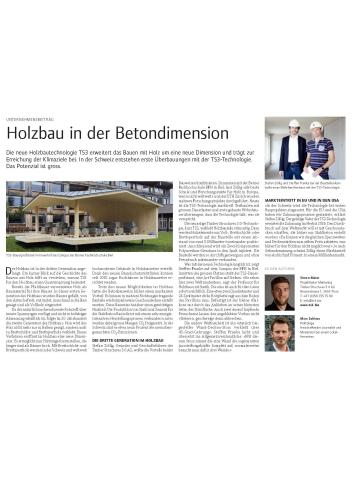

Timber construction in the concrete dimension
